Digital Mobile C-Arm- HMD Series
Designed for a wide surgery purpose and powerful functions and High Definition (HD) images the HMD C-Arms Series fit in different high demand procedures. General Surgery, Orthopedics, Spine Surgery, Pain department and other X-Ray Fluoroscopy and Radiographic Diagnosis
Outstanding imaging performance, the good quality image at a low dose (HD)
- Digital Radiography Dynamic (DDR) in two options adapted to your needs
- High Gray Scale for better image contrast
- Optional sizes: 21×21 cm*, 29x29cm**
- Resolution: 1024×1024 (HD)*, 2048×2048 (4K)**
- Conversion 16 bits

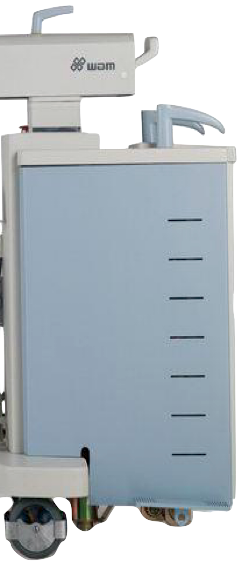

High Power, competent for different clinical demands.
- Radiography range: 40~125 KV & 32~160mA*.
- Fluroroscopy: 40~120 KV 0.3 ~5mA
- Continuous Fluoroscopy
- Enhanced Fluoroscopy
- Pulse Fluoroscopy
- Quick Charge & Intelligent battery management (extend the life of the battery)
- Optional power: 5KW or 12KW*

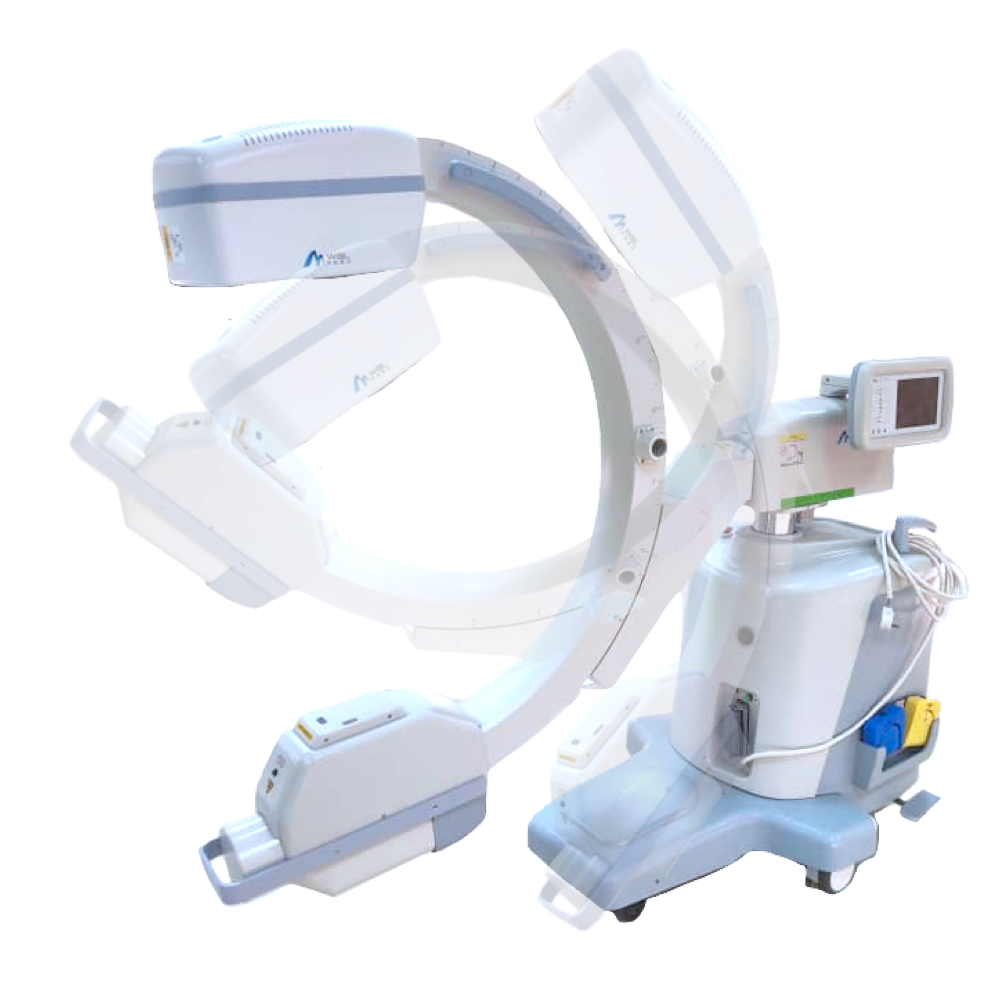

Smart and Compact Design, Slim in Shape, more flexible moving
- Motorized Slip Turn range: +90º ~ -25º
- Motorized Slip Rotating range: +/- 180º
- Motorized Slip horizontal movement: 200 mm
- Motorized Slip vertical movement: 400 mm
- Manual Swift (Left and Right) range: +/- 12.5º
- Distance from C-Arm focus to detector SID: 1050mm

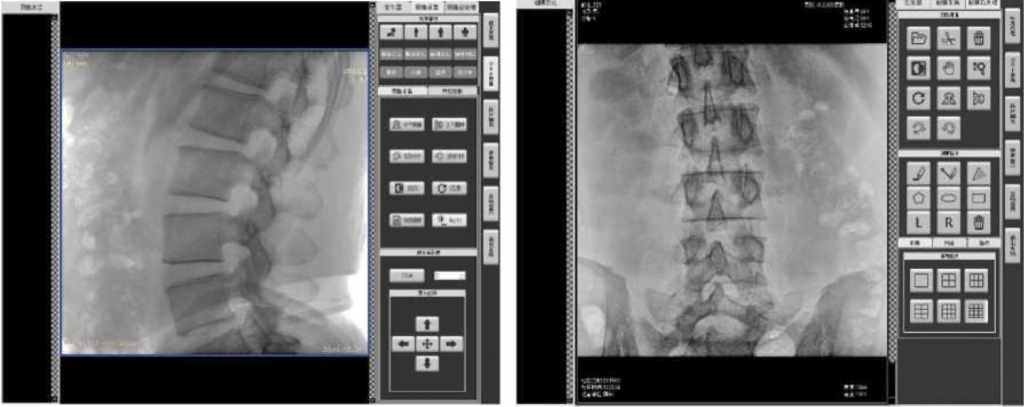

Powerful Image System
- 2 Set of Medical Display Monitor 19 inches
- Detachable surface pro, provides convenient touch-screen control.
- Wireless hand switch, for remote exposure control* optional
- Image Processing function: Zoom, reversal, Tailor, Mark, Measure & more
- Roadmap, Fluoroscopy loop available
- All DICOM Licenses included (Ready for DICOM Networks)
- Wireless Connection *Optional

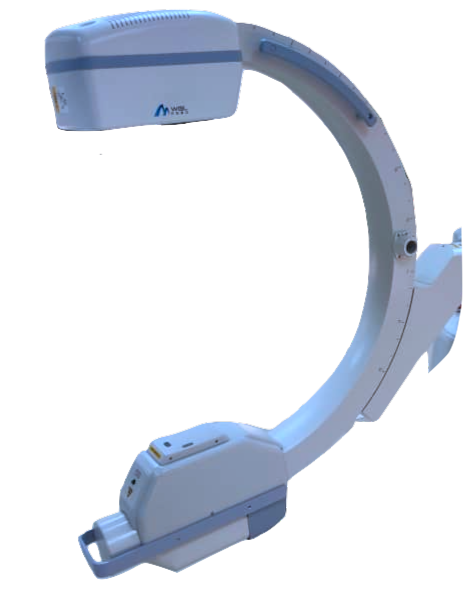

Long Arm and easy movement
From initiation of movement to manipulation of the arm, the ease and subtlety make the HMD series the most comfortable, fast, and secure way to capture digital dynamic images and share them with DICOM networks in seconds
- Depth of C-Arm: 680 mm
- Open Distance C-Arm: 840mm

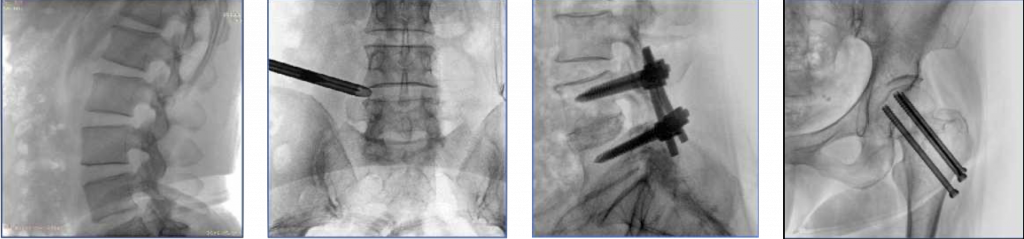

Clinical Images
