Digital Dynamic Radio-fluoroscopy DRF Series
Digital Dynamic DRF Series is a complete Dynamic Detector Multifunctional Angiography System perfect for health centers with high patient flow. The system can meet requirements for all applications in Radiography and Fluoroscopy All in One
Single and Faster and large Flat panel (HD) Dynamic Detector Configuration…

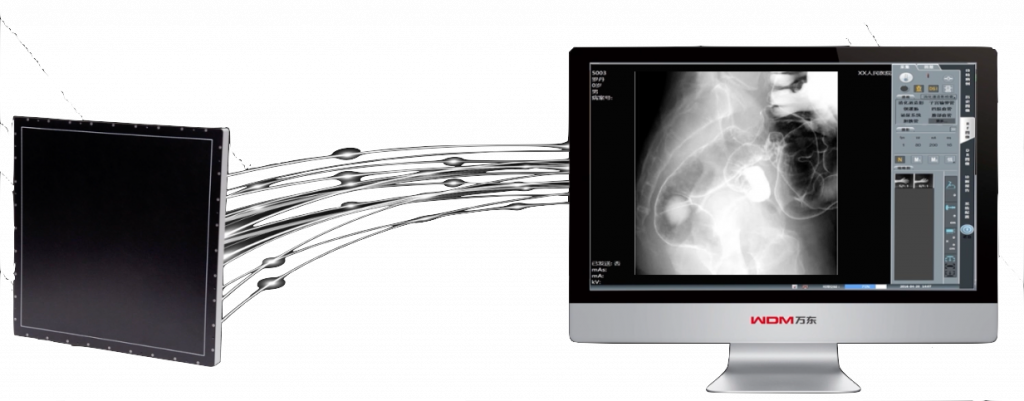

One of the unique features of RFX DRF Series system is its single HD Dynamic detector (17 x 17 inches)for all clinical demands with an improved data transmission by optical fiber permit acquisition rate of 30fps

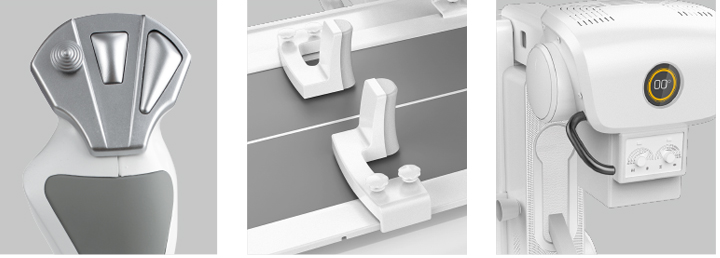

Artistic Design, easy Operation & Multifunctional
Heavy Bed support with tomo
- The Bed support patient over 200Kg with all movement included .
- Table length : 220cm
- Longitudinal movement: 120cm
- Minimum SID: 100cm max 180cm
- Compression system
- Tomo Tilt
- One 90º button

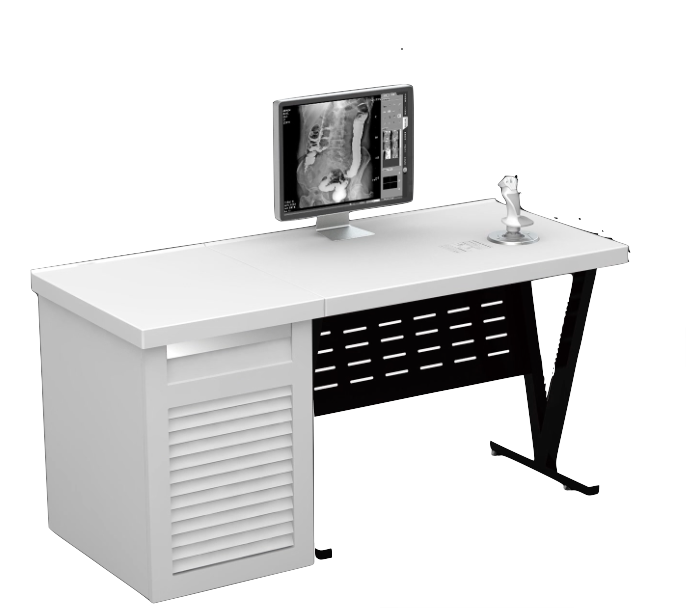

Intuitive Acquisition System, with advance acquisition and post-processing functions
- Multi-Spectrum Processing Technique (MPT)
- Auto Shutter
- Digital- Correlative
- One-button Acquisition

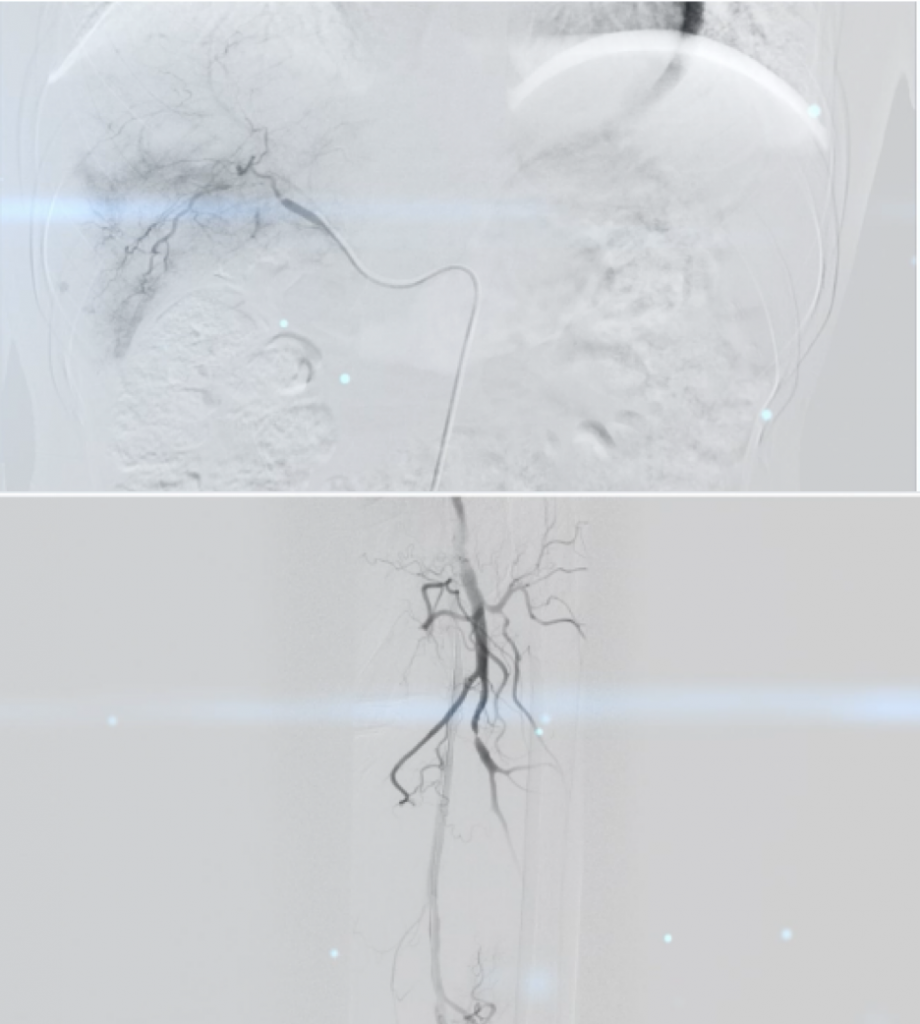

- Digital Substraction DSA

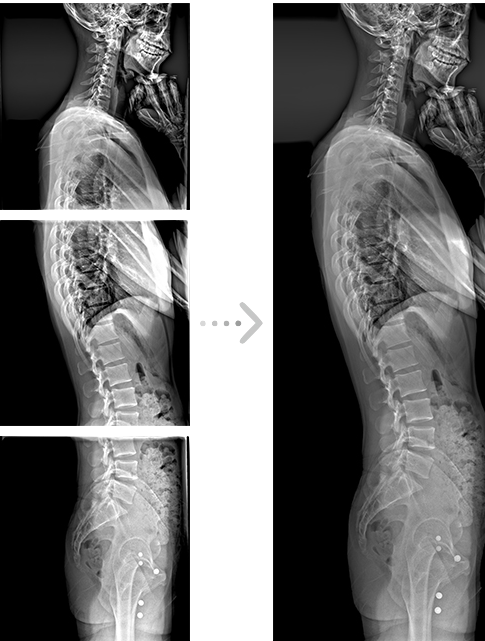

- Intelligent Stitching
- All DICOM Licenses Included

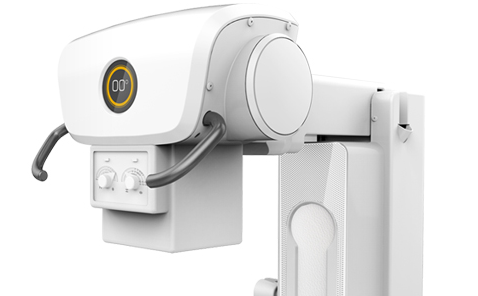

Powerful 400 or 600KHU X-ray tube
The modern design of the DRF-Series has a convenient configuration of the power you need adapting to your workflow
Full Power, ready for Ultra-high Demand
- Energy: 50/80KW
- KV: 40~150KV
- mAs: 25 ~630mAs/ 25 ~1000mAs
- 3 Phase Powered
- Auto Exposure Control Interface
High Frequency Generator
Multi Functional Equipment
Digital Fluoroscopy, Spot Image, Digital Radiography (DR), DSA and more. A complete solution in Radiography Gastro Procedures
Prepared for Low Dose in Patient and staff

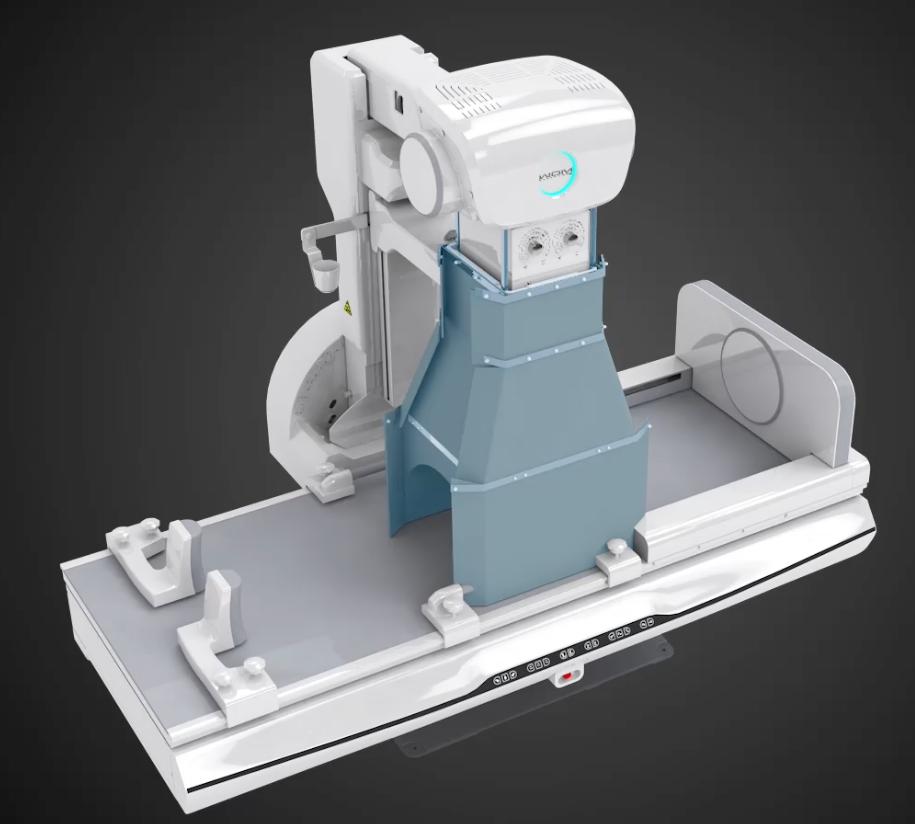

The DRF Series is designed to reduce the Dose in patient and clinical staff with a sophisticated Automatic exposure control AEC and the virtual collimator for non-exposure FOV adjustment. The Scattering Shield is a perfect optional feature for center wit a high workflow of long procedures

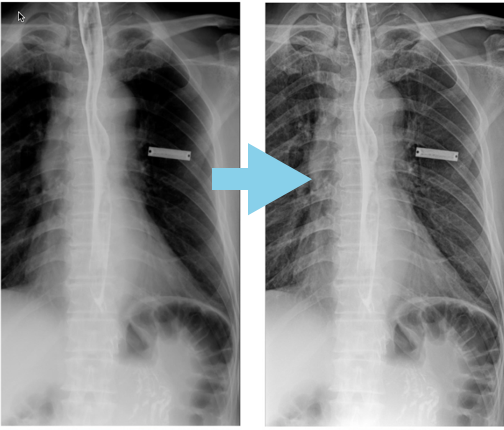

New Algorithm and quality images
New generation in processing technology, creates images with sharper edges, high contrast details and being able to observe the esophagus, lungs and bones. Clearer mucous membrane imaging
Prepared for ERCP

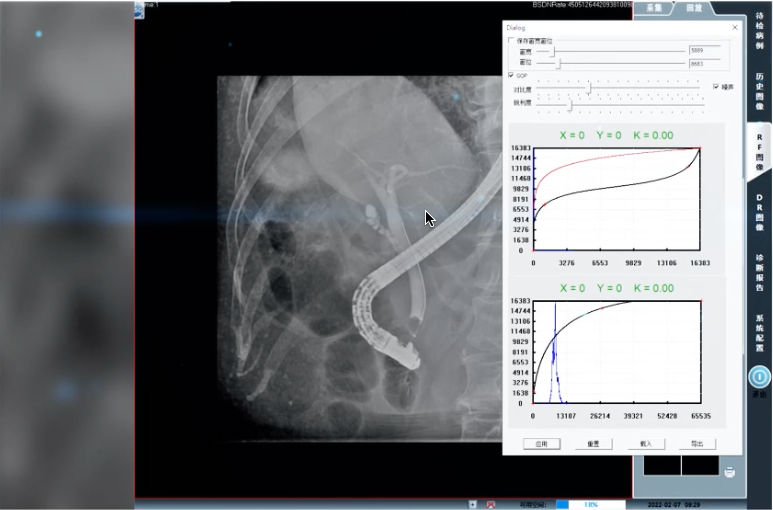

The DRF-series is a system prepare for Gastro interventional procedures, an advanced post processing software for analysis and easy reports with ERCP, Renal, Esophagus and Uterine tube curves

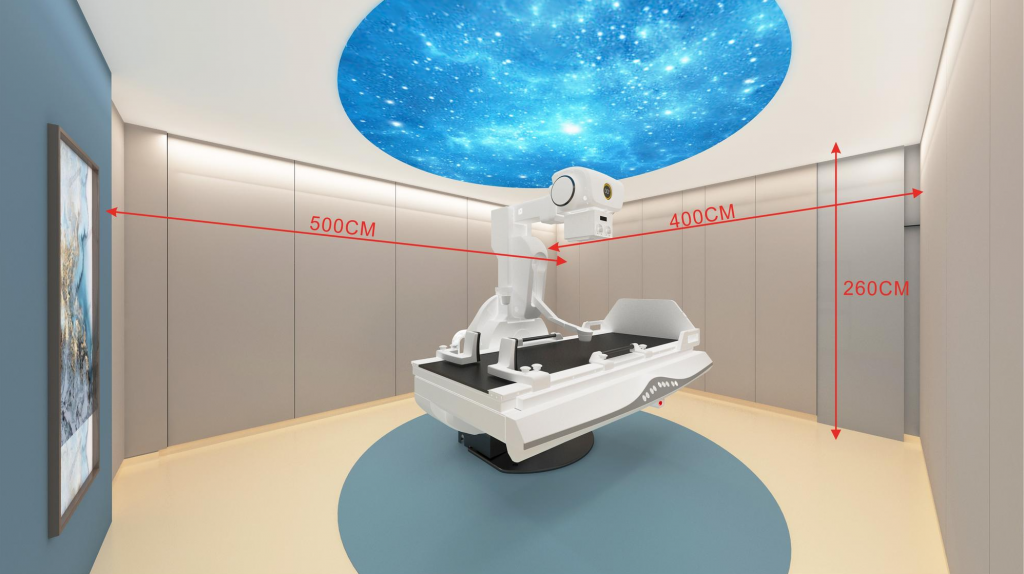

Standard Site, cutting-edge Technology

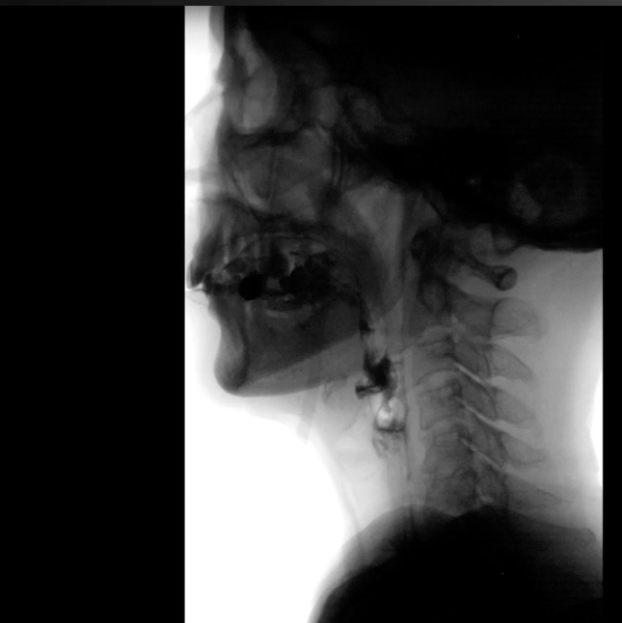

Clinical Images
